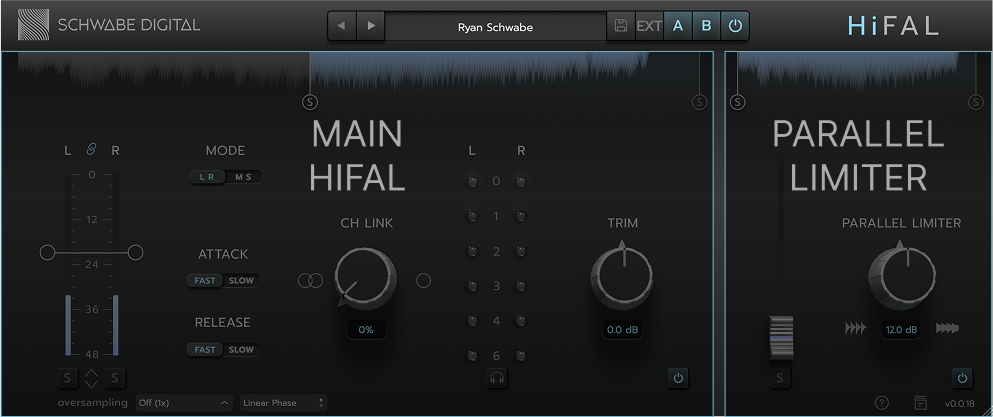

HiFAL has two processing sections: the Main high-frequency acceleration limiter and the Parallel Limiter, called PARALIMIT. The Main processor includes a Dry/Wet control in the footer for blending the processed and unprocessed signals. PARALIMIT operates as a separate parallel processing path alongside the Main processor. Each section can be turned on or off using the power button in the bottom-right corner of its section.

Main Limiter

When only the Low Frequency Crossover Flag is active, everything below the flag passes through unprocessed, while frequencies above it are processed by the Main HiFAL processor. When the High Frequency Crossover Flag is also active, processing is limited to the range between the two flags. Frequencies below the low flag and above the high flag are left unprocessed. The processing band is shown with a soft blue halo, while the unprocessed signals appear in grey. You can right click to solo and drag that blue process band around.

Parallel Limiter

When only the Low Frequency Crossover Flag is active, any signal below that point is muted, and only the signal above it is sent to paralimit. When both the Low and High Frequency Crossover Flags are active, only the signal between the two flags is processed. Everything outside that range—both below the low flag and above the high flag is also muted. The output includes only the limited signal from the selected frequency range.

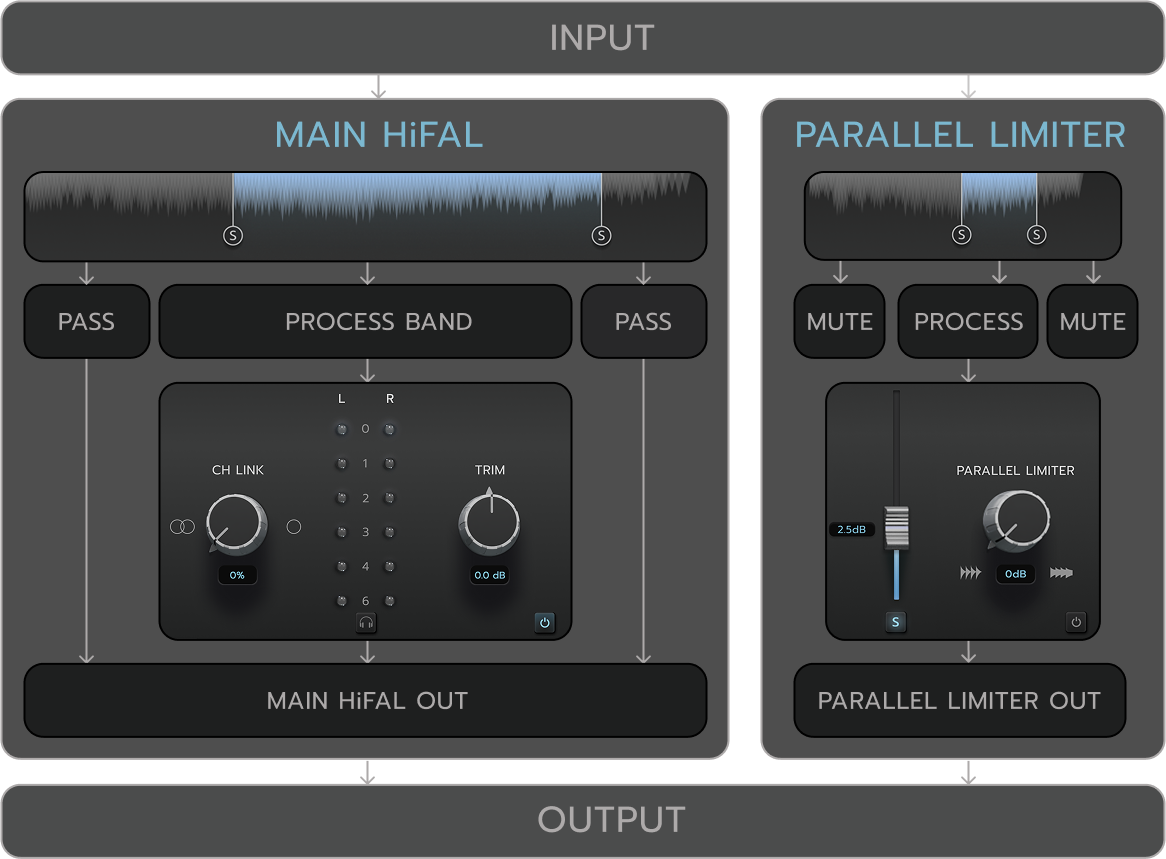

Processing Breakdown

The Main HiFAL section processes the core signal, while the Parallel Limiter acts as an additive layer, filling in high-frequency gaps with frequency-specific limiting. The Parallel Limiter can apply subtle control or heavy compression to the selected frequency range, then blend that processed signal back in parallel with the Main processor.

This setup gives you precise, bottom-up control to reinforce clarity or texture without overwhelming the main signal. The draggable blue halo shows exactly what is being processed, and right-clicking (or Control-clicking) lets you momentarily solo that range as you sweep to find the band that needs attention. This makes it easy to isolate and fine-tune the area you want to shape with the Main HiFAL processor or reinforce with the Parallel Limiter.

Be well,

Ryan Schwabe

Grammy-nominated and multi-platinum mixing & mastering engineer

Founder of Schwabe Digital
